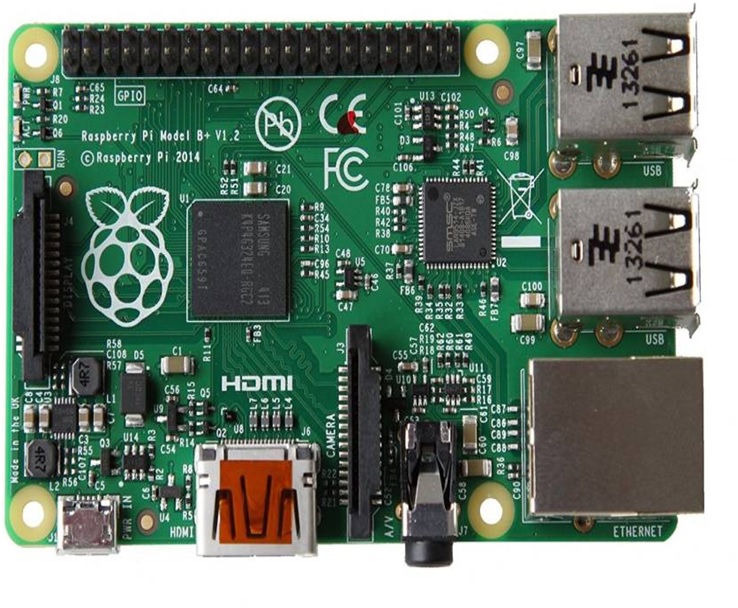

RaspberryPi / Raspberry Pi Pin Configuration
Pin Configuration
|
Pin No.
|
Details
|
Pin No.
|
Details
|
|
1
|
3V3 Power
|
2
|
5V Power
|
|
3
|
GPIO2(SD A1 12C)
|
4
|
5V Power
|
|
5
|
GPIO3(SCL1 12C)
|
6
|
Ground
|
|
7
|
GPIO4
|
8
|
GPIO14(UARTO_TXD)
|
|
9
|
Ground
|
10
|
GPIO15 (UARTO_RXD)
|
|
11
|
GPIO17
|
12
|
GPIO18(PCM_CLK)
|
|
13
|
GPIO27
|
14
|
Ground
|
|
15
|
GPIO22
|
16
|
GPIO23
|
|
17
|
3V3 Power
|
18
|
GPIO24
|
|
19
|
GPIO10(SP10_MOSI)
|
20
|
Ground
|
|
21
|
GPIO9(SP10_ MOSO)
|
22
|
GPIO25
|
|
23
|
GPIO11(SP10_SCLK)
|
24
|
GPIO8(SP10_CE0_N)
|
|
25
|
Ground
|
26
|
GPIO7(SP10_CE1_N)
|
|
27
|
ID_SD(12C ID EEPROM)
|
28
|
ID_SC(12C ID EEPROM)
|
|
29
|
GPIO5
|
30
|
Ground
|
|
31
|
GPIO6
|
32
|
GPIO12
|
|
33
|
GPIO13
|
34
|
Ground
|
|
35
|
GPIO19
|
36
|
GPIO16
|
|
37
|
GPIO26
|
38
|
GPIO20
|
|
39
|
Ground
|
40
|
GPIO21
|
|
